ACB-022 | Cottage House

SQ FT

3723

BEDROOMS

5

BATHS

4

½ BATHS

CARS

2

STORIES

2

WIDTH

62'

DEPTH

54'

1 review

$799.00

Product total
Options total
Grand total
Plan Review & Delivery
After you purchase this amazing house plan, the floor plan file will be sent directly to your email. You can also download it anytime from your account under the ‘Download’ section.

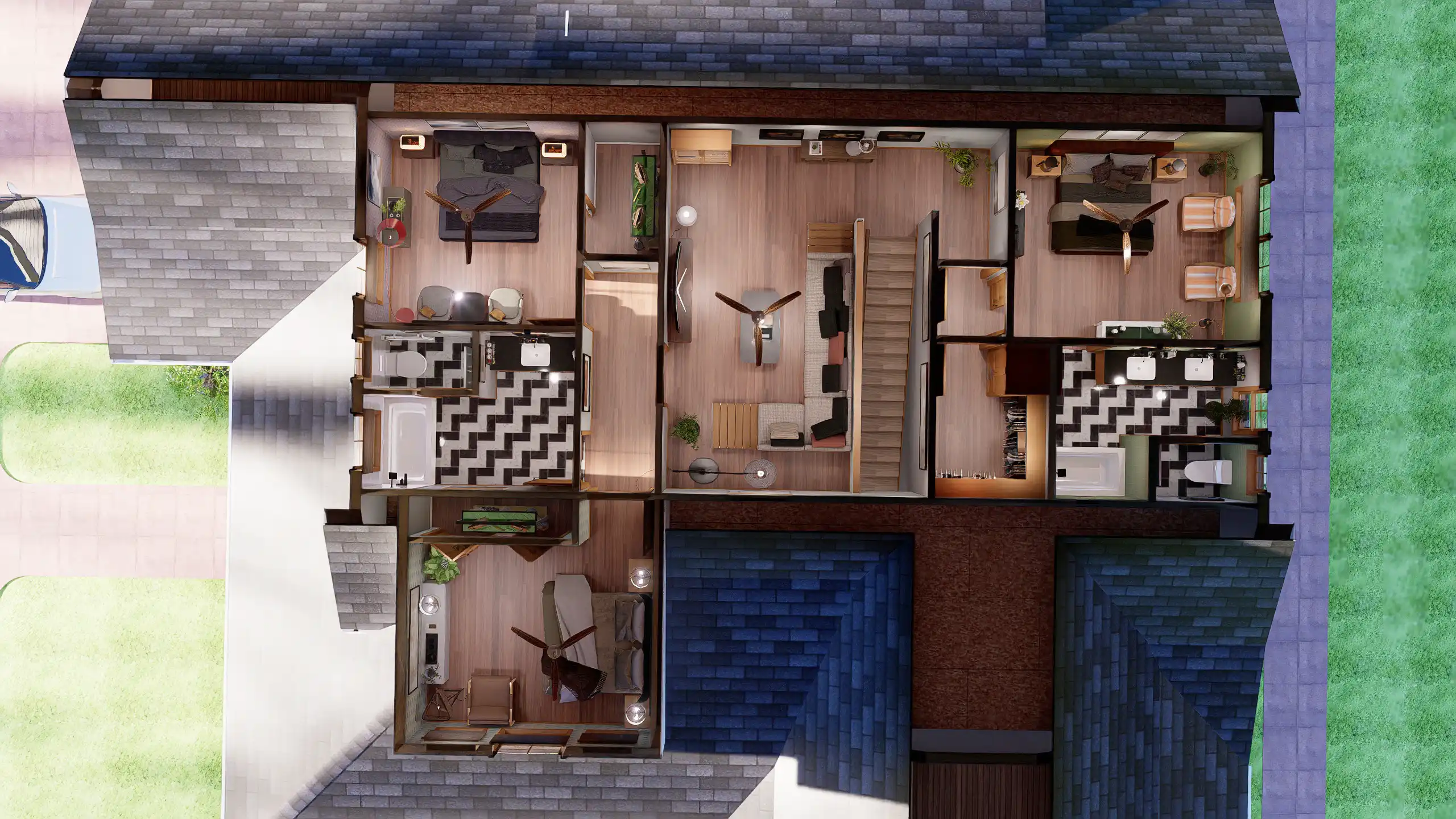

Explore Every Corner of This Stunning Dream Home in Full 3D Walkthrough

License Details

Single Build License

✓ For individuals building a single home
✓ Non-transferable, non-commercial use
✓ Ideal for homeowners or DIY builders

Builder Pro License

✓ For contractors or small developers
✓ Covers multiple builds (1-5 home builds) for client use
✓ Great for boutique homebuilders or firms

Commercial License

✓ For high-volume developers or commercial firms
✓ Covers unlimited builds for client use
✓ Tailored for architects, real estate companies

Know More

Images © Arch C Studio. All Rights Reserved

Key Features

1-Spacious Layout – Offers a livable area of 3,186 sq. ft. with 5 bedrooms and 4 full bathrooms.
2-Wrap-around Porch – A welcoming front porch with wood columns and railings, perfect for relaxing outdoors.
3-Open Concept Living – Large kitchen and dining area seamlessly connected to the living room for gatherings
4- Dual Master Suites – One master bedroom on the main floor and another on the second floor for flexibility.

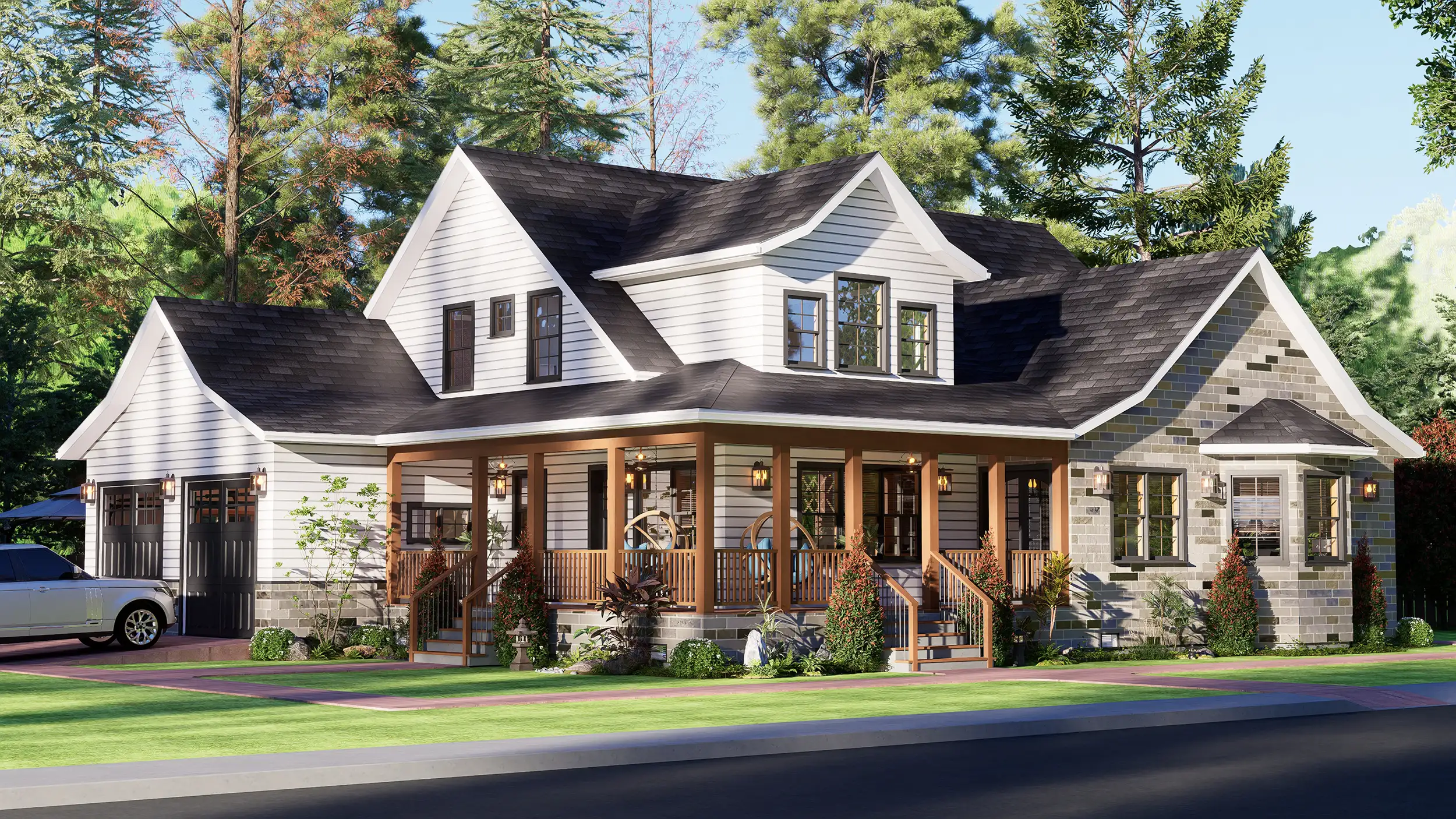

5- Elegant Exterior – Combination of stone veneer and horizontal siding with detailed gables and dormers.
6- 2-Car Garage – Convenient side-entry garage with direct access to the house
7-High Ceilings – 9 ft. ceilings on the first floor and 8 ft. on the second floor, creating an airy feel
8-Outdoor Living – Over 685 sq. ft. of porch and patio space for entertaining and family activities.

Details:-

HEATED SQ FT

Total Heated Area:

3723 SQFT

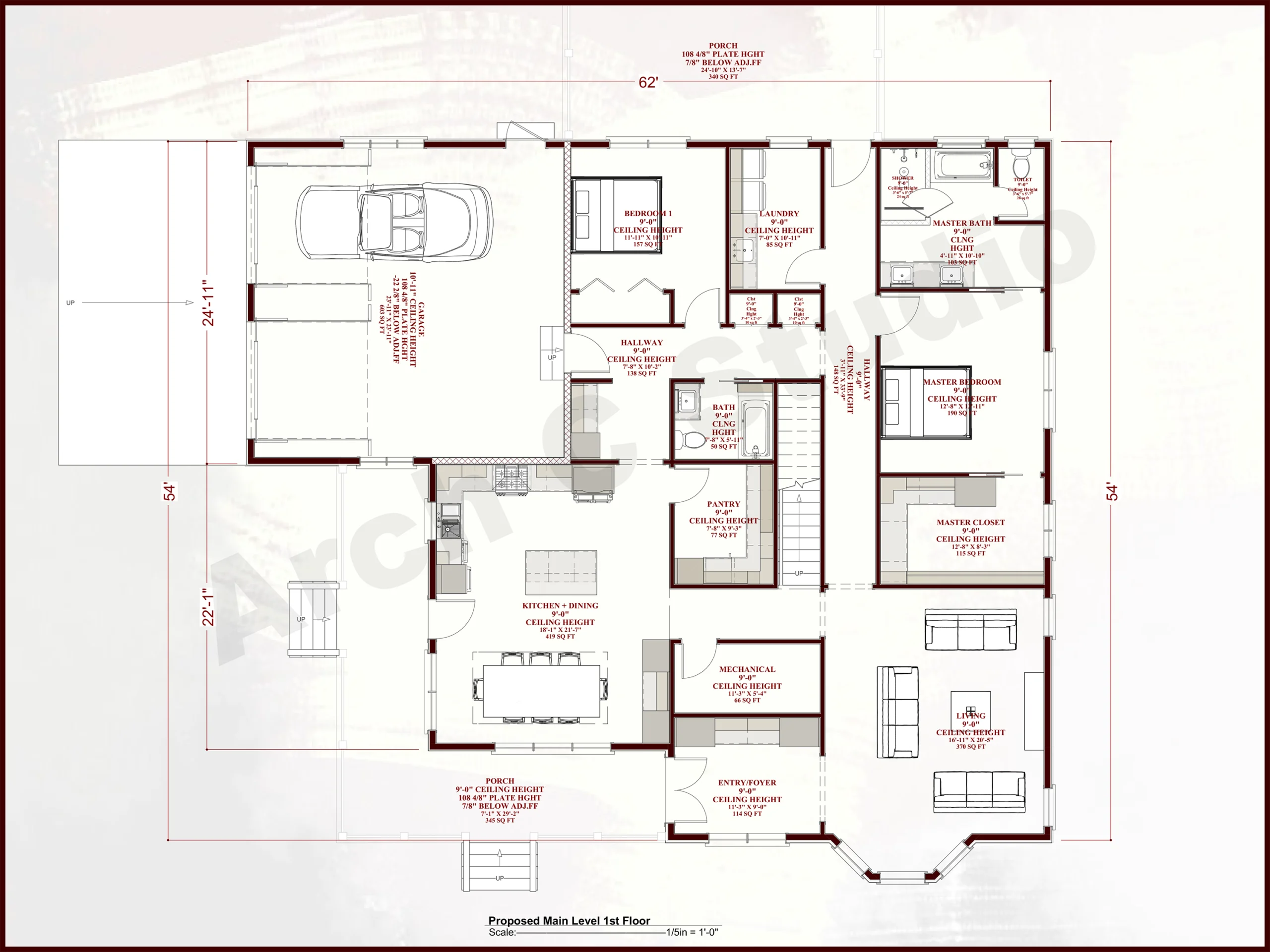

First Floor:

2232 SQFT

Second Floor:

1491 SQFT

Bonus Room:

217 QSFT
UNHEATED SQ FT

Total Unheated Area:

1288 SQFT

Garage:

603 SQFT
PORCH & PATIO SQ FT

Total Porch/Patio Area:

685 SQFT

Front Porch:

345

Back Porch:

340
CEILING HEIGHTS

First Floor:

9 feet

Second Floor:

8 feet

BEDROOMS:

5

KITCHEN:

Open Style

PANTRY:

77 SQFT

FULL BATHS:

4

HALF BATHS:

–

FLOORS:

2

GARAGE SIZE:

2 cars

WIDTH:

62′

DEPTH:

54′

HEIGHT:

27-4′

FOUNDATION:

You Can Select

MAIN ROOF PITCH:

10:12

EXTERIOR FRAMING:

2×6 Wood

SWIMMING POOL

707 SQFT
Our Streamlined Customization & The Delivery Process in 4 Easy Steps

Our process is designed to be simple, efficient, and tailored to your needs. Here’s how it works:

  1. Tell Us About Your Modifications: Once you purchase your dream home plan, you’ll instantly receive the floor plan PDF. Review it carefully and note any adjustments you’d like. Then, simply fill out our modification form (below) or email us at modifications@archcstudio.com with the details. The more information you share, the better we can bring your ideas to life.
  2. Our Team Reviews Your Request: After you submit your request, our design team will carefully review your changes. We’ll provide you with all the details by email, including the estimated timeframe needed to complete your modifications.
  3. Modification Pricing: Every plan comes with 2–3 rounds of revisions at no extra cost, giving you flexibility and peace of mind. If additional changes are required, we’ll give you a clear, upfront quote before moving forward.
  4. Receive Your Modified Plans: Once your modifications are complete, your updated plans will be sent to you in the format you purchased. Timelines vary depending on the complexity of changes, but most projects are completed within 3–5 business days. Your final modified floor plan will be available in your My Account dashboard, and a copy will also be sent directly to your email.”
What's Included in Your Digital Package
In The Signature Plan

✅ General Notes for builder reference

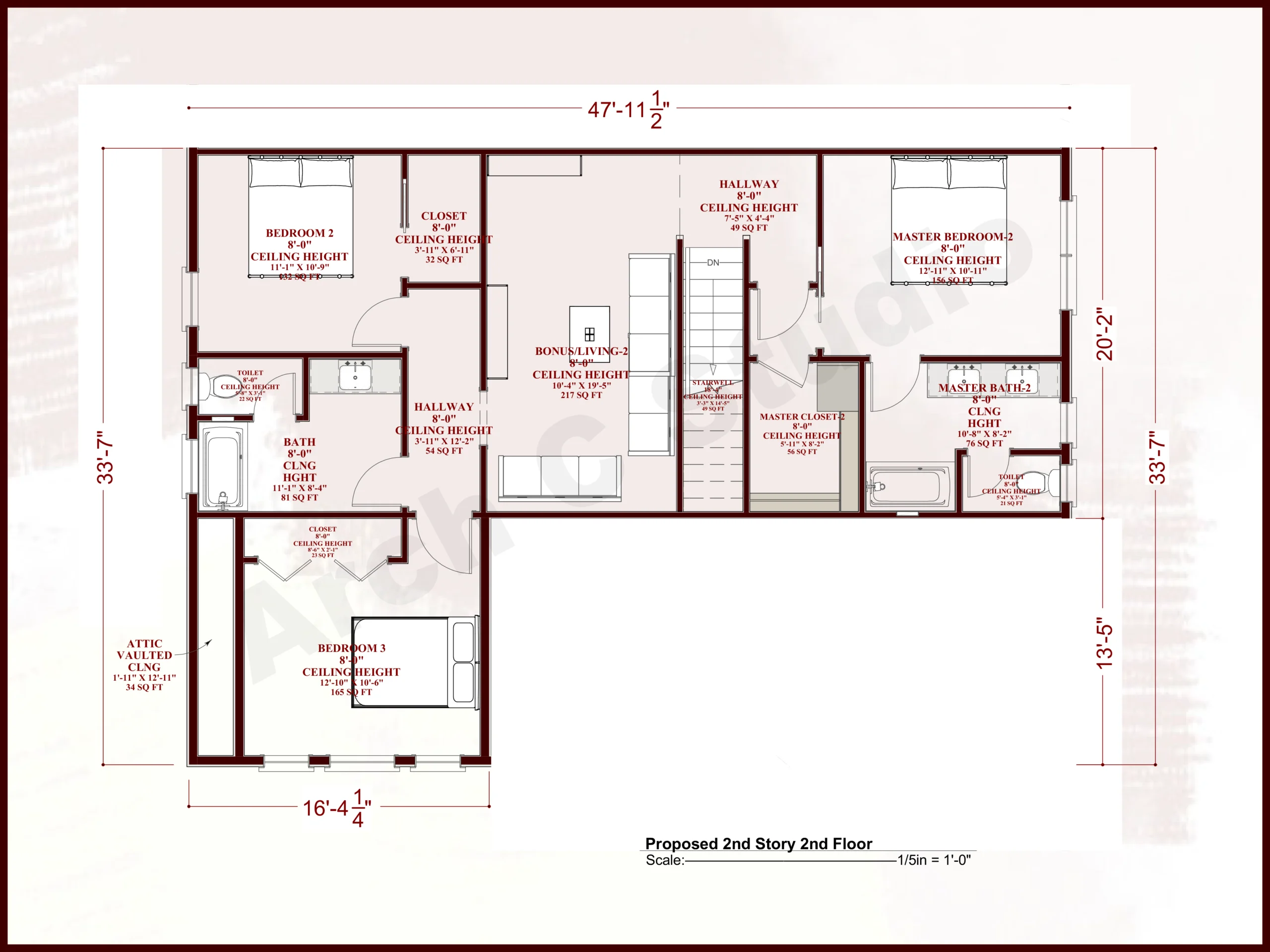

✅ Floor Plan with dimensions
✅ Foundation Plan (YOU CAN SELECT)
✅ Window & Door Schedules
✅ Exterior Elevations (Front, Rear, Left, Right)
✅ Roof Plan & Roof Framing Plan
✅ Wall Framing Plan
✅ Cross Sections & Construction Details
✅ Kitchen Plan & Elevations
✅ Cabinet Schedule with Details
✅ Laundry & Closet Elevations
✅ Proposed Plumbing & HVAC Layout
✅ Electrical Plan
✅ 40+ Rendered 3D Images
✅ CAD FILE
✅ Material List
✅ Estimated Cost to Build (based on U.S. average rates).
✅ Mirror/reverse the plan  (YOU CAN SELECT)
✅ The standard plan is in Imperial units (ft/in). Metric version (in millimeters) available upon request.
✅ Up to 2 minor modifications (e.g., small room resizing, door/window relocation,Swap two room labels (e.g. study ↔ bedroom),Change exterior material labeling (e.g. siding to stone),etc)

In The Elite Plan

✅ Everything from ‘The Signature Plan’

✅ Local Code Modification [We can adjust the plan to meet your local building code requirements]
✅ Energy Code Compliance – REScheck
✅ Utility & Terrain Integration (Adapts the house plan to your lot’s real slope, elevation, and utility layout)
✅ Custom Landscape Design [Please tell us what kind of plants or trees you prefer and where you’d like them placed on your lot (e.g., front, back, near the house, along fences, etc.]
✅ We’re by your side throughout your home-building journey — from the first concept to a build-ready plan you can trust. Need changes or have questions along the way? We’re just an email away. We provide dedicated email consultation and thoughtful revisions to ensure your final design aligns perfectly with your vision.

See All Verified Reviews on Trustpilot

Description

ACB-002: Your Dream 5 Bedroom Cottage House Plan

Discover the perfect blend of rustic charm and modern luxury with our ACB-022 5-Bedroom Cottage House Plan. Designed for growing families and those who love to entertain, this stunning two-story home offers a spacious and efficient layout with all the features you desire. With its elegant exterior and thoughtful interior, this plan provides a beautiful and functional space for everyday living and memorable gatherings.

Key Features of this 5 Bedroom Cottage House Plan:

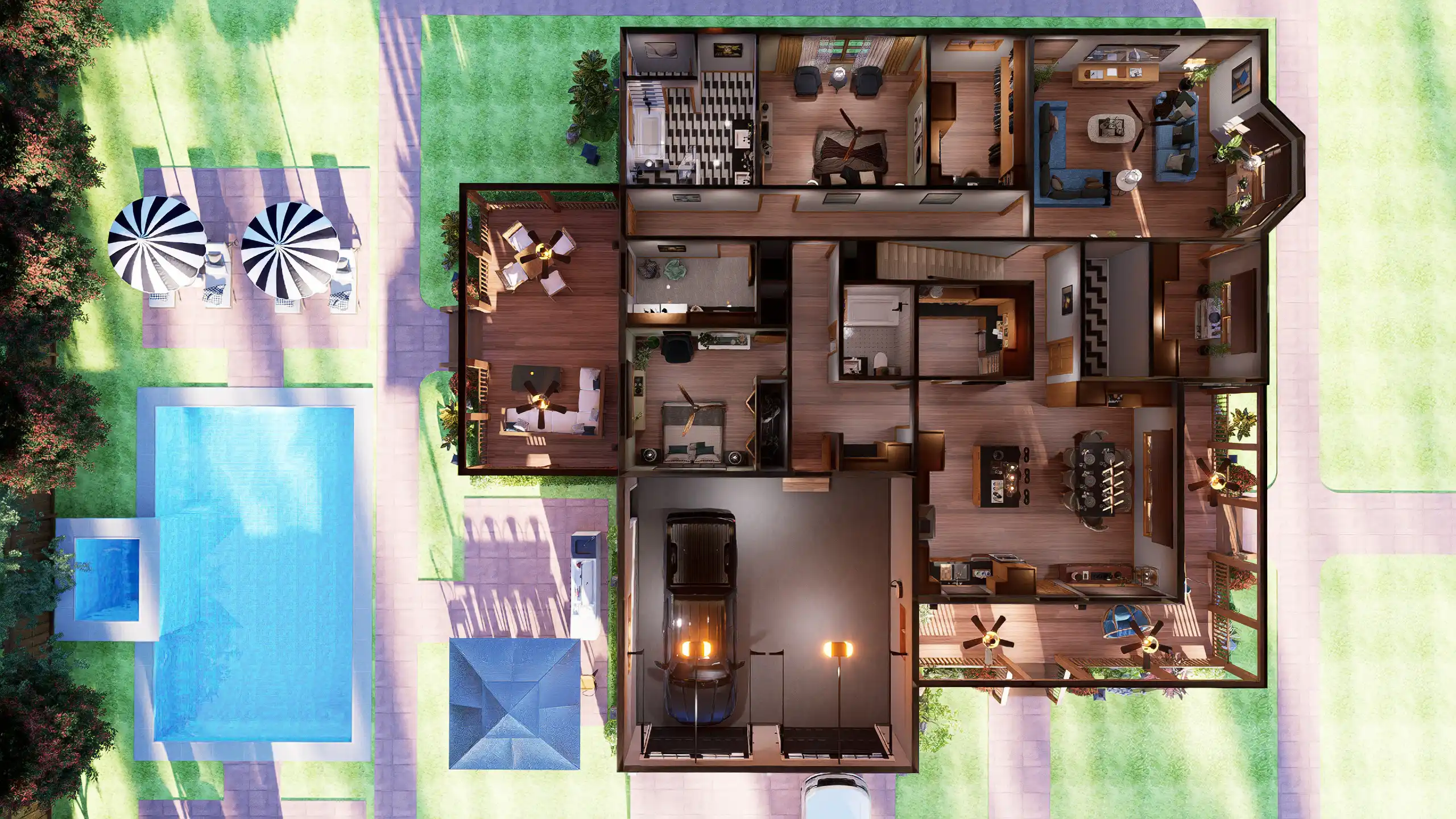

This home is designed with an open-concept living area, perfect for seamless flow between the kitchen, dining, and living rooms. At 3,186 square feet of heated space, this floor plan includes five bedrooms and four full bathrooms. A bonus room of 217 sq. ft. provides flexible space for a home office or playroom. The unique dual master suite layout—one on the main floor and one on the second floor—offers exceptional flexibility for multi-generational living or guest accommodations.

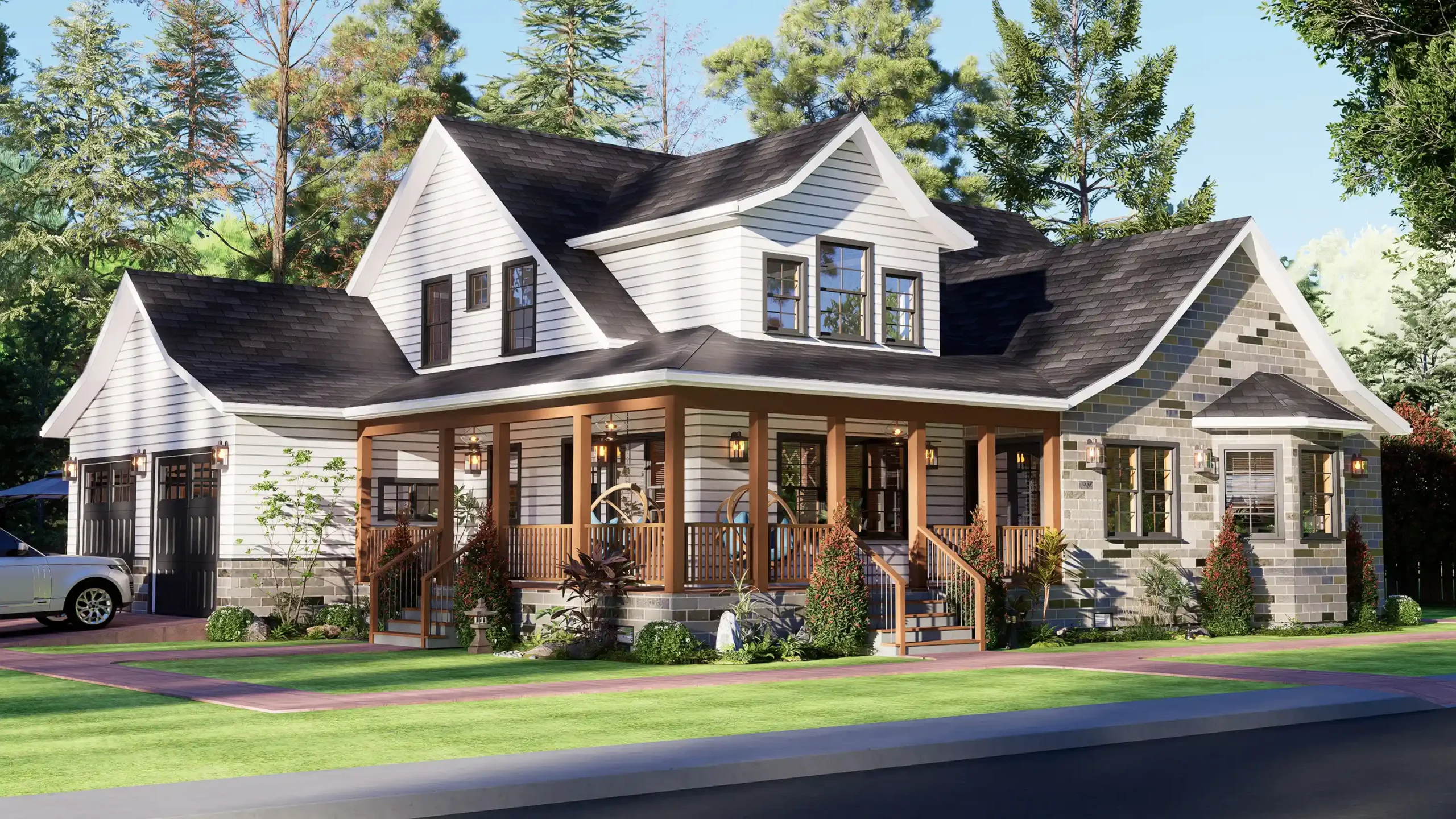

The exterior boasts a combination of stone veneer and horizontal siding, creating a classic and inviting facade. The wrap-around front porch and additional back porch and patio area provide over 665 square feet of outdoor living space, making it perfect for relaxing outdoors. A two-car garage with a side-entry offers convenient and direct access to the home. High ceilings, 9 feet on the first floor and 8 feet on the second, create an airy and open feel throughout the house.

Comprehensive Digital Package for Your Build

When you choose our ACB-022 house plan, you get a comprehensive digital package to help you through every step of your building journey. Our “Signature Plan” includes all the essentials:

  • Floor Plans with dimensions

  • Foundation Plan (Crawlspace, Slab, or Basement)

  • Window & Door Schedules

  • Exterior Elevations (Front, Rear, Left, Right)

  • Roof Plan & Roof Framing Plan

  • Wall Framing Plan

  • Cross Sections & Construction Details

  • Kitchen & Cabinet Elevations

  • Plumbing & HVAC Layouts

  • Electrical Plan

  • 40+ Rendered 3D Images

  • CAD File

  • Material List

  • Estimated Cost to Build

  • Mirror/reverse the plan (YOU CAN SELECT)

Our process is designed to be simple and efficient. Upon purchasing, you’ll instantly receive the floor plan PDF. We also offer up to two rounds of minor modifications at no extra cost to ensure the plan fits your specific needs. For more extensive changes, we provide a clear, upfront quote. Your final modified floor plan will be ready within 3-5 business days after your confirmation.

Licensing Options

We offer flexible licensing to suit your needs:

  • Single Build License: Ideal for individuals building a single home.

  • Builder Pro License: Perfect for contractors or small developers managing multiple builds.

  • Commercial License: Tailored for high-volume developers and commercial firms. (know more)

Start building your dream home today with our ACB-022 5-Bedroom Cottage House Plan. With its beautiful design, functional layout, and comprehensive package, you have everything you need to bring your vision to life.
